Model:Top-mount Sand Filter
Material:Fibreglass
Detail information of Top-mount Sand Filter

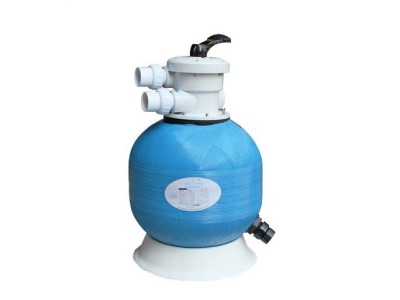

Top-mount Sand Filter Introduction
The winding of fiberglass around the filter body makes the filter more durable, deforming-proof, and resistance to chemicals and corrosives.
Uniquely designed distribution makes a stable and even water flow to improve the drainage system.
All sand filters with the pressure gauge. Easy to install, maintenance-free.
Top-mount Sand Filter Features
1. Unique and advanced design ensures fast draining and stabilizes water flow.
2.The 6-position multi-port valve with a user-friendly handle easily provides you a maximum flow at the low-pressure drop.
3.The sand filter comes with a precise pressure gauge.
4.The outlet turbidity is less than 2FTU
Top-mount Sand Filter Specifications
| Model | Tank dia (mm) | Height (mm) | Valve size (mm) | Filter area (m2) | Silica Sand (kg) | Design Flow(rpm) |
| Pl450 | 455 | 730 | 40 | 0.16 | 40 | 133 |
| Pl500 | 535 | 770 | 40 | 0.22 | 85 | 192 |
| Pl650 | 635 | 850 | 40 | 0.33 | 155 | 270 |
| Pl700 | 710 | 960 | 40 | 0.38 | 185 | 320 |
| Pl800 | 820 | 1050 | 50 | 0.50 | 250 | 420 |
| Pl900 | 920 | 1180 | 50 | 0.64 | 350 | 500 |
| Pl1000 | 1020 | 1220 | 50 | 0.79 | 500 | 550 |
| Pl1200 | 1220 | 1410 | 50 | 1.13 | 700 | 700 |
