Driver:Isolated Power
Luminous Efficiency:100 Lm/W
Application:Highway, Ringway, Main Road
Energy Saving Waterproof IP65 Outdoor LED Street Light for Ringway with Long Lifespan Basic Info.
Application
Highway, Ringway, Main Road
IP Rating
IP65
Certification
CE, RoHS, CCC, EMC
Voltage
100-240VAC,
Luminous Efficiency
100 Lm/W
CRI
70/80
Beam Angle
70°*140°
Driver
Isolated Power
Housing Color
Black/Iron Grey
Power Factor
>0.9
Trademark
HOTSOON
Transport Package
Plastic Bag, Cardboard and Foam Into Cartons
Specification
650× 200× 80mm
HS Code
9405409000
Energy Saving Waterproof IP65 Outdoor LED Street Light for Ringway with Long Lifespan parameter:
| Model | LSL-50W | LSL-100W | LSL-150W |
| Power | 50W | 100W | 150W |
| (W) | |||
| Input voltage | 100-240VAC, | ||
| Power factor | >0.9 | ||
| Light efficiency | 100 | ||
| (lm/w) | |||
| Beam angle | 70°*140° | ||
| Color temperature | 2200K-6500K | ||
| CRI | 70/80 | ||
| Driver | Isolated Power | ||
| LED | SMD 2835 | ||
| Housing color | Optional: | ||
| Black/Iron grey | |||
| IP grade | IP65 | ||
| Material | Aluminum + optical PC | ||
| Item size | 500×170×75mm | 650×200×80mm | 680×220×85mm |
| (mm) | |||
| N.W(kg/pcs) | 1.6kg | 2.1kg | 3.6kg |
| Warranty | 2 years | ||
| Packing Dimension | 540×190×128mm | 640×243×138mm | 715×243×138mm |
| (mm)/(pcs) | |||
| MOQ/model | 100pcs | ||
LED Chip: Lumileds LED Chips which is the most famous Brand in chips field, high efficiency high lumin and long lifespan, high quality.
Energy Saving Waterproof IP65 Outdoor LED Street Light for Ringway with Long Lifespan advantage:
Power Supply: Hotsoon LED street lights are adopted Meanwell UL approved driver, IP66 and high quality, It improved lights Performance. Power efficiency ≥95.
Colour temperature: LED street lights provide a range of colour temperatures from 2200 to 6500 Kelvin helping to enhance a building's exterior.

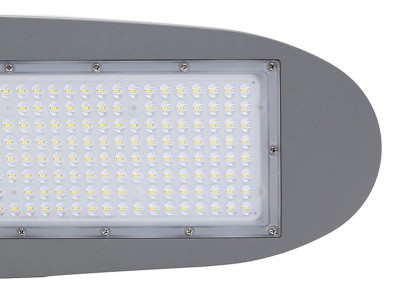

Optics: Optical assembly: hermetically sealed providing IP66. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

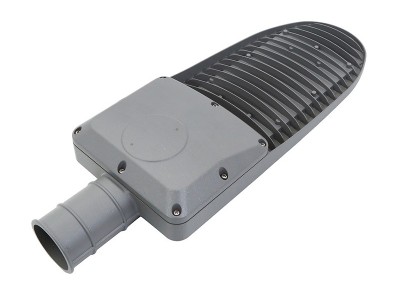

Housing: Finned aluminum housing electrostatically sprayed with a polyester powder paint finish, Follow anti-corrosion priming, and oven cured at 180°C.

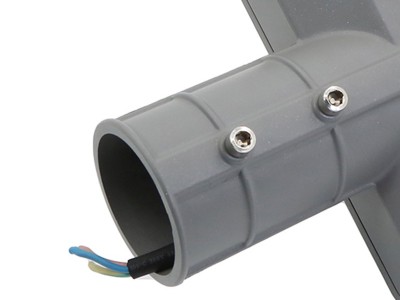

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: CE, RoHS & CCC authentication.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
IP65 High standard protection design anti sugrge 4000V power supply
Energy Saving Waterproof IP65 Outdoor LED Street Light for Ringway with Long Lifespan application:
Aplications : Main Road, Highway, Park, Industrial Park, Square, Garden, Yard, Schoolyard, Sidewalk etc.
