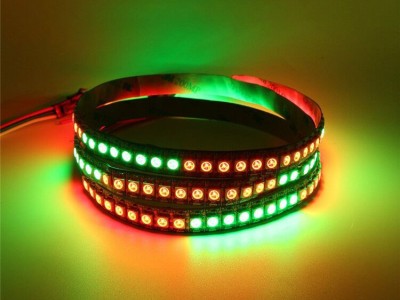

5V SK6812/ Ws2812b/ LC8812/APA104 Build-in IC 5050 RGB LED Strip Lights

2021-12-10 00:450 inquiry
Price:$0.00/Piece
Send Inquiry

5V SK6812/ Ws2812b/ LC8812/APA104 Build-in IC 5050 RGB LED Strip Lights Quick Details:

Application:Warehouse

Lamp Body Material:PC

CRI (Ra>):80

Input Voltage(V):DC5V

Lamp Luminous Flux(lm):High Brightness

Warranty(Year):3-Year

Working Lifetime(Hour):50000

Working Temperature(℃):-40 - 60

Certification:ce, RoHS

Light Source:LED

Length:5 meters

Support Dimmer:Yes

Lighting solutions service:Project Installation

Emitting Color:Changeable

LED Light Source:SMD5050

PCB Color:White PCB Black PCB

Item Name:ws281B led strip

LED Quantity:60leds/m

Luminus:High Brightness

Voltage:DC5V

LED Board:2Oz

IP Rating:IP20/IP65/IP67/IP68

IC Type:SK6812/ Ws2812b/ LC8812/APA104

Luminous Efficacy(lm/w):100

Lamp Power:28.8w/m




SMD 5050 Addressable RGB LED Strip

Model No.VoltageLED Qty.(led/m)Related Watt.PCB Width(mm)PCB ColorICCutting UnitStandard Length
S3-5RGBDC 5V30 LEDs/m7.2w/m10mmWhite/BlackBuilt in WS28121 LED5m/roll
S6-5RGB60 LEDs/m14.4w/m10mm5m/roll
S9-5RGB96 LEDs/m21.6w/m10mm5m/roll
S14-5RGB144 LEDs/m34.56w/m12mm1m/roll


5V SK6812/ Ws2812b/ LC8812/APA104 Build-in IC 5050 RGB LED Strip Lights Features:

1. Control principle: IC is built right into LED. An IC controls one LED and they form a group of loop. the controller is controlled by the controlling circuit of IC inside the FPCB, so as to control the LED strip changes with different effects;

2. 1 LED/Unit can be cut

3. R,G,B and IC are encapsulated in 4PIN or 8 PIN LED.

4.IC is built-in LED. One LED is one pixel. Every single LED is addressable. It is programmable.

4. It can achieve single pixel control, point by point scanning, reach magic RGB chase, horse racing, gradual change and other effects.

5. Data transmission speed can reach 800Kbps

6. Uniform lighting, low failure rate and very cost effective.

7. Environmental safety and Energy Saving: no pollution, small power consumption

8. Light and thin: suitable for installation in the narrow space inside
