Lamp Body Material:Aluminum Alloy
Color Temperature:Ww(2700~3800K), Nw(4000-5000K) or Cw(5500-6700K)
Optional Powers:450W/640W/960W/

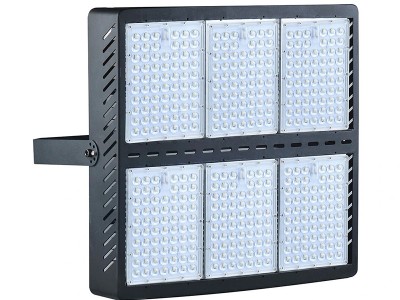

450W 640W 960W Tunnel Stadium LED Light with Motion Sensor Basic Info.
Driver:
UL&cUL&TUV&CE Meanwell Power Supply
Lamp Luminous Efficiency(Lm/W):
130lm/W/150lm/W
Testing:
Ies File
Dimming:
Available
Beam Angle:
60degree (Default), 25degree, Type III(Optional)
Light Source:
SMD LED
Warranty:
5 Years
PF:
>0.95
Colour:
Black
Transport Package:
69*63*27cm
Specification:
CE/ROHS/ETL/DLC
HS Code:
9405409000
Production Capacity:
2000PCS/Month
450W 640W 960W Tunnel Stadium LED Light with Motion Sensor specification:
Rated Watts | 450w 640W 960W- |
Input Voltage | 100-277VAC/50-60HZ / 20CM80VAC/50-60Hz |
Luminous Flux | 450W= 585001m 640W= 83200LM 960W=124800LM |
Repalcement | MH / HPS 1500W |
PF: | >0.95 |
Driver Model | UL listed power supply |
Beam Angle | Type 1,2,3,4,5 (15 distribution patterns available) |
Light Source/Count | SMD LED |
Color Rendering Index (CRI) | Ra>80 |
Operating Temperature | -40。~ 45°C |
LED Luminous Efficiency | 130lm/w |
Color Temperature | 2700K SW / 3000K WW /4100K NW / 5000K DW / 5700K CW |
LED Emitter Life | 50,000 hours at 25°C |
Heat Sinks: | Aluminum Alloy and PC Lens |
Color | Black |
IP Rating | IP65 |
Application | football stadiums, soccer fields, basketball courts, baseball fields, tennis courts, golf courses, nataoriums, playgrounds, and hockey rinks. |
The Dimensions | 599.00 * 375.00 * 317.00mm (23.58 * 14.76 * 12.48in) |
Packing | 1pcs/Box |
Warranty | 5 Years |
450W 640W 960W Tunnel Stadium LED Light with Motion Sensor Dimensional Drawing:
Aluminum die-casting heat sinks is good for heat dissipation.SMD LED.
It's major to replace the conventional Stadium light. Wide colour availability in degrees Kelvin(K),2700-6700K.
Special circuit design, each LED work separately,avoiding the single broken LED influence problem.
No RF interference,No IR/UV radiation , no mercury pollution.
Green, energy saving, long and reliable life of 50,000 hours. Environment friendly， energy saving (70~80%).
Warm White 3000K,Natural White 4100K,Cool White 5000K
450W 640W 960W Tunnel Stadium LED Light with Motion Sensor Package:
450W 640W 960W Tunnel Stadium LED Light with Motion Sensor Application:
