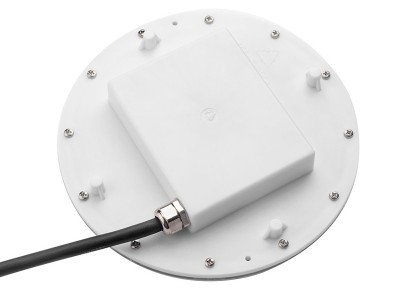

Quick Details of DC12V 18W 5 wires RGB DMX control multicolor PAR56 ultra flat PAR56 led swimming pool light:
Item Type:Pool Lights
Color Rendering Index(Ra):80
Light Source:LED
Lighting solutions service:Agi32 layout
Lifespan (hours):50000
Working Time (hours):50000
Input Voltage(V):DC12V
Lamp Luminous Flux(lm):RGB 520LM
CRI (Ra>):75
Working Temperature(℃):-10 - 40
Working Lifetime(Hour):30000
IP Rating:IP68, IP68
Lamp Body Material:ABS, ABS + Anti-UV-Transparent PC cover
Application:Garden
Warranty(Year):2-Year
Beam Angle(°):120
Power:18W±10%
Input Voltage:DC 12V
Led:105PCS * SMD3528 led chip
Color methods:RGB DMX512 control
Dimension:177mm*43mm
Certification:ce, EMC, FCC, PSE, RoHS
| Model | P56-18W | |||
Electrical
| Voltage | DC12V | ||
Current | 1420ma | |||
HZ | 17W±10% | |||
Optical
| Wattage | SMD5050-RGB high bright LED | ||
LED chip | 105PCS | |||
LED(PCS) | R:620-630nm | G:515-525nm | B:460-470nm | |
CCT | 520LM±10% | |||
importED LED CHIPS
lmported LED chips
high brightness, long lifespan
ANTI-UVPC COVER
Anti-Uv , without color fadingwithin 2 years
ConSTANT CURRENTDRIVER
Working steadily without fluctuation.Longer lifespan
4-LAYER
WATERPROOF STRUCTURE
Patented 4-layer design,succeed 10M deep water test
MATCHING PRODUCT
RECOMMENDATION
This product needs to be equipped with the following products to use
ARE YOU SUFFERING the following problems now?
PRODUCT ConNECTION DIAGRAM of DC12V 18W 5 wires RGB DMX control multicolor PAR56 ultra flat PAR56 led swimming pool light:
POWER DISTRIBUTION ROOM ConNECTION DIAGRAM
Application of DC12V 18W 5 wires RGB DMX control multicolor PAR56 ultra flat PAR56 led swimming pool light:
Led Vinyl Pool Lights widely used for underwater lighting in film pools, hot spring pools, garden pools, etc.
lt is suitable for outdoor lighting in family swimming pool lighting, hotel pool lighting, natatorium lighting and so on.
